Oracle 10.1.2 iAS metadata repository ettevalmistamine

Allikas: Kuutõrvaja

MRCA paigaldamine

MRCA abil MR skeemide laadimiseks olemasolevasse 10R2 andmebaasi tuleb teha sellised ettevalmistused, numbrid viitava Metalink'i (http://metalink.oracle.com/) nootidele, neile ligipääsuks peab olema Metalink süsteemis kasutada kasutaja

Kasutada MRCA (Metadata Repository Creation Assistant) versiooni 10.1.2.0.3, http://www.oracle.com/technology/software/products/ias/htdocs/101202.html

 $ cksum as_linux_x86_mrca_101203.cpio
 1961190085 480973824 as_linux_x86_mrca_101203.cpio

Pakime MRCA paigaldusmaterjali lahti

 $ cpio -dmvi < as_linux_x86_mrca_101203.cpio

MRCA kasutamiseks tuleb esmalt MRCA ise paigaldada, nt kataloogi

 /u01/app/oracle/product/10.1.2/mrca

Veenduge, ega Oracle'ga seatud keskkonnamuutujaid ei ole kirjeldatud, ega esine vatavaid teid PATH'is

 $ env | grep ORA*
 $ echo $PATH

Näiteks sellise skriptiga /home/oracle/system/env.sh saab nad eemaldada

 unset ENV
 unset ORA_CRS_HOME
 unset ORA_DB_HOME
 unset ORACLE_SID
 unset ORA_NLS10
 unset ORACLE_BASE
 unset ORA_IAS_HOME
 unset ORACLE_HOME
 unset LD_LIBRARY_PATH
 export PATH=/usr/local/bin:/usr/bin:/usr/X11R6/bin:/bin:/usr/games:/opt/gnome/bin:/usr/lib/mit/bin:/usr/lib/mit/sbin
 unset CLASSPATH
 unset TNS_ADMIN
 unset AGENT_HOME
 unset ORA_ASM_HOME
 unset ORACLE_HOSTNAME

ning öelda

 $ . ./system/env.sh

Ja käivitada installer

 $ ./runInstaller
 ***************************************************************
 The following files should not be present :
 /etc/profile.d/oracle.csh
 /etc/profile.d/oracle.sh
 /etc/profile.d/alljava.csh
 /etc/profile.d/alljava.sh
 Please remove the above files or move them to .bak
 Remove the ". ./.oracle" entries from /home/oracle/.profile
 Logout and login to reset the Shell environment.
 ***************************************************************
 Do you want to continue anyway: [y/n]
 y
 For SuSE, you are required to login as root and run the patch present in
 the utils/3167528/ and utils/4015045 directory
 Enter y if you have allready installed the patch
 Enter n to exit the installer and run the patch
 Is the patch for bug # 3167528 and 4015045 run : [y/n] :
 y

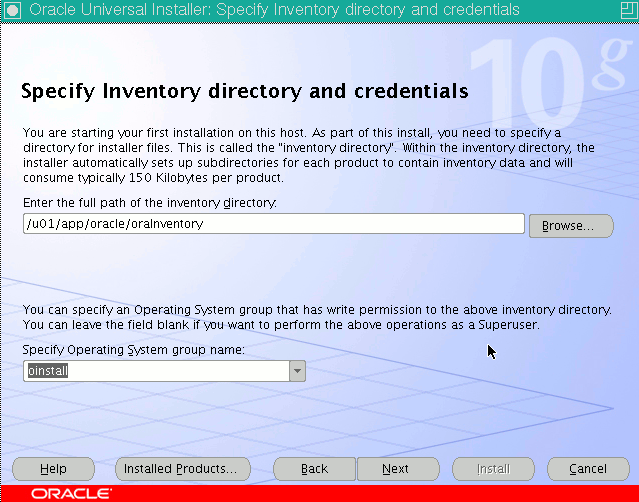

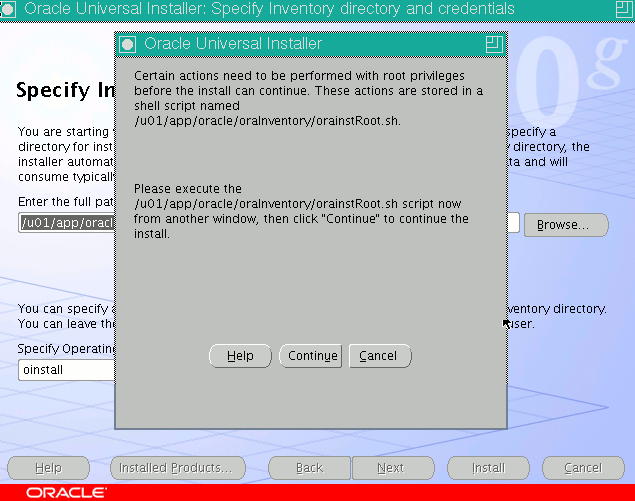

Kui kõnealuses arvutis on MRCA installer esimene Oracle programm, siis küsitakse inventory asukohta


ning moodustatakse kaks faili


 # /u01/app/oracle/oraInventory/orainstRoot.sh
 Creating the Oracle inventory pointer file (/etc/oraInst.loc)
 Changing groupname of /u01/app/oracle/oraInventory to oinstall.

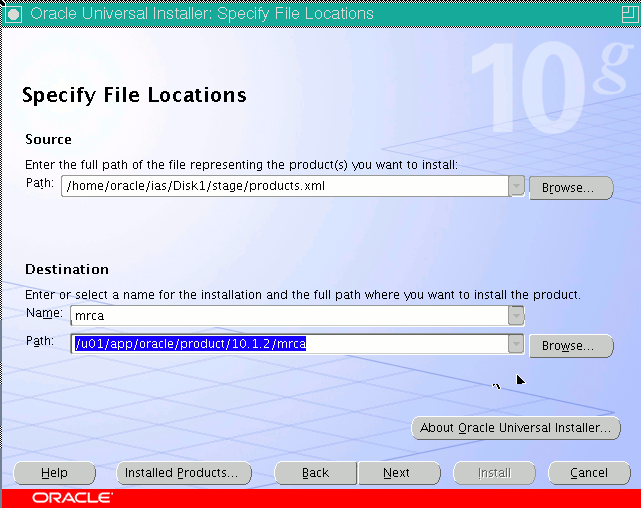

Seejärel tuleb näidata millisesse kataloogi tarkvara paigaldatakse

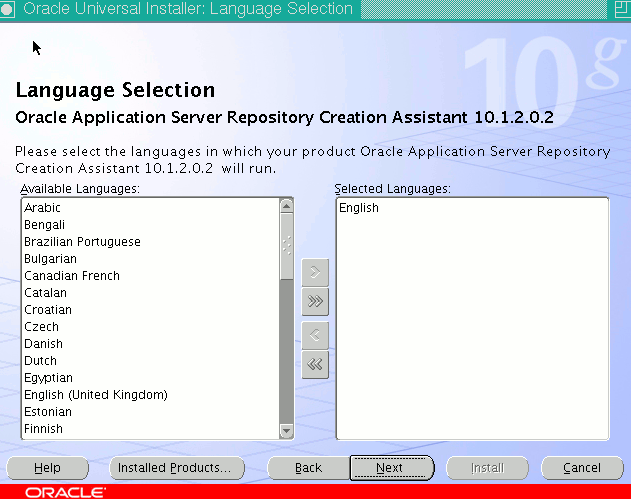

Keelevalikud, installeri kasutajaliidese keele osas


Seejärel sooritab installer standarse operatsioonisüsteemi parameetrite kontrolli, mille tulemus võiks olla näiteks selline

 Checking operating system certification
 Expected result: One of redhat-2.1,redhat-3,redhat-4,SuSE-9,SuSE-8,UnitedLinux-1.0
 Actual Result: SuSE-9
 Check complete. The overall result of this check is: Passed
 =======================================================================

 Checking security kernel parameters
 Checking for shmall=2097152; found shmall=2097152.      Passed
 Checking for msgmnb=65535; found msgmnb=65536.  Passed
 Checking for semmns=32000; found semmns=32000.  Passed
 Checking for semopm=100; found semopm=100.      Passed
 Checking for msgmni=2878; found msgmni=16.      Failed <<<<
 Checking for shmmax=2147483648; found shmmax=3294967296.        Passed
 Checking for hardnofiles=65536; found hardnofiles=65536.        Passed
 Checking for VERSION=2.6.5-7.97; found VERSION=2.6.16.60-0.27-default.  Passed
 Checking for file-max=131072; found file-max=131072.    Passed
 Checking for semmsl=256; found semmsl=1250.     Passed
 Checking for semmni=142; found semmni=256.      Passed
 Checking for msgmax=8192; found msgmax=65536.   Passed
 Checking for shmmni=4096; found shmmni=4096.    Passed
 Checking for softnofiles=4096; found softnofiles=65536. Passed
 Check complete. The overall result of this check is: Failed <<<<
 Problem: The security parameters in the kernel do not meet the minimum requirements (see above).
 Recommendation: Perform operating system specific instructions to update the kernel parameters, namely BIT_SIZE and   noexec_user_stack.
 =======================================================================

 Checking recommended operating system packages
 Checking for pdksh-5.2.14-780.1; found Not found.       Failed <<<<
 Checking for sysstat-5.0.1-35.1; found sysstat-8.0.4-1.4.       Passed
 Checking for openmotif21-libs-2.1.30MLI4-119.1; found Not found.        Failed <<<<
 Checking for libstdc++-3.3.3-43.24; found libstdc++-4.1.2_20070115-0.21.        Passed
 Checking for make-3.80-184.1; found make-3.80-202.2.    Passed
 Checking for binutils-2.15.90.0.1.1-32.5; found binutils-2.16.91.0.5-23.31.     Passed
 Checking for gcc-3.3.3-43.24; found gcc-4.1.2_20070115-0.21.    Passed
 Checking for gcc-c++-3.3.3-43.24; found gcc-c++-4.1.2_20070115-0.21.    Passed
 Checking for gnome-libs-1.4.1.7-671.1; found Not found. Failed <<<<
 Checking for gnome-libs-devel-1.4.1.7-671.1; found Not found.   Failed <<<<
 Checking for libstdc++-devel-3.3.3-43.24; found libstdc++-devel-4.1.2_20070115-0.21.    Passed
 Check complete. The overall result of this check is: Failed <<<<
 Problem: Some recommended packages are missing (see above).
 Recommendation: You may actually have installed packages which have obsoleted these, in which case you can successfully continue with the i
 =======================================================================

 Checking glibc installed on the system
 Expected result: 2.3.3-98.28
 Actual Result: 2.4-31.54
 Check complete. The overall result of this check is: Passed
 =======================================================================

 Validating ORACLE_BASE location (if set)
 Check complete. The overall result of this check is: Passed
 =======================================================================

Siit on näha järgmised probleemid

 * Checking for msgmni=2878; found msgmni=16.      Failed <<<< - tuleb seada kernel.msgmni parameeter
 * mõni pakett on puudu - neid võib praktiliselt ignoreerida kuna me kasutame tegelikult SLES10 operatsioonisüsteemi

Peale parameetri seadmist käsuga

 # sysctl -w kernel.msgmni=2878

ning faili /etc/sysctl.conf lisades.

Peale installeri töö katkestamist ja enne uuesti käivitamist tuleb vahepeal eemaldada failisüsteemist tekkinud kataloog

 $ rm -rf /u01/app/oracle/product/10.1.2/mrca

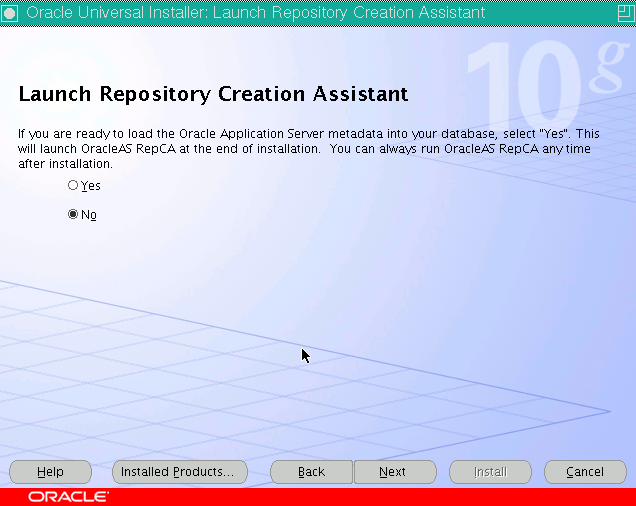

Küsitakse, kas installeri paigaldamise järel asutakse koheselt andmebaasi ettevalmistama, vastame eitavalt, et protseduurid lahus hoida

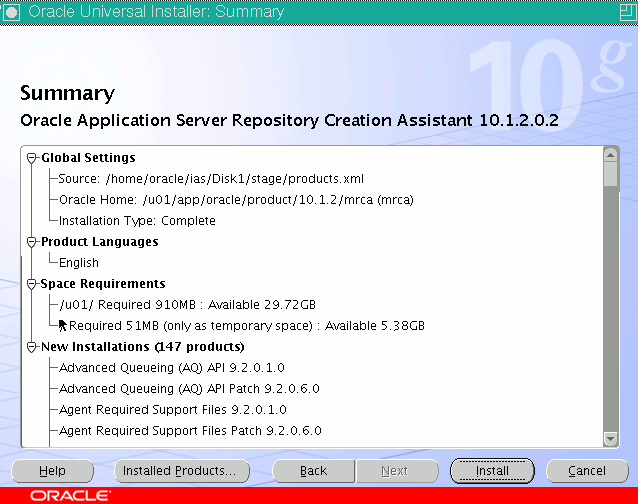

Näidatakse tehtud otsustusi

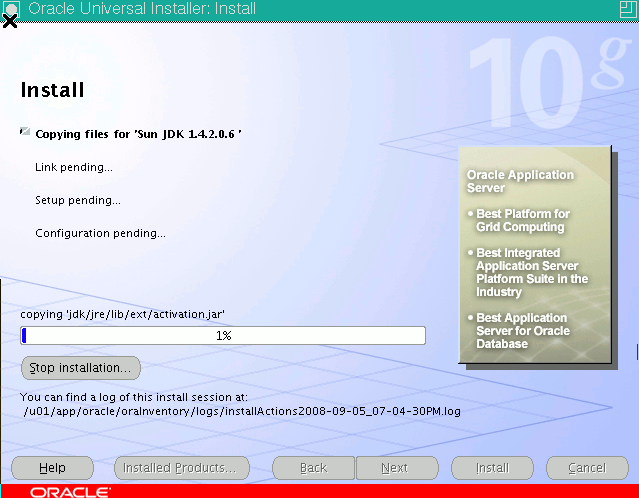

Ja toimub tarkvara paigaldamine

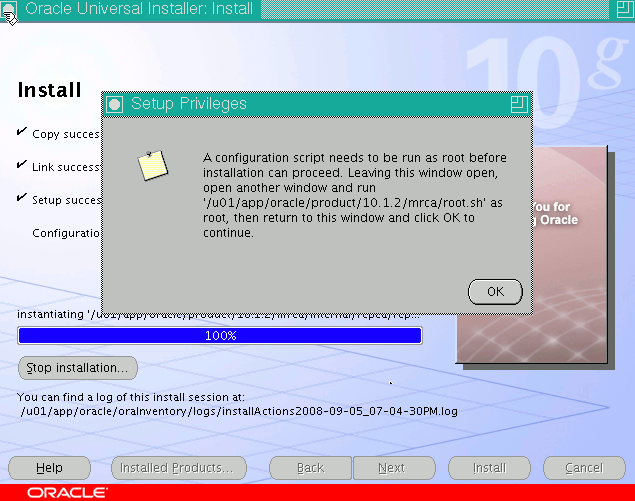

Paigalduse lõpul tuleb käivitada juurkasutajana skript

 # /u01/app/oracle/product/10.1.2/mrca/root.sh
 Running Oracle9 root.sh script...
 \nThe following environment variables are set as:
     ORACLE_OWNER= oracle
     ORACLE_HOME=  /u01/app/oracle/product/10.1.2/mrca

 Enter the full pathname of the local bin directory: [/usr/local/bin]: /usr/local/mrca/bin
 Creating /usr/local/mrca/bin directory...
    Copying dbhome to /usr/local/mrca/bin ...
    Copying oraenv to /usr/local/mrca/bin ...
    Copying coraenv to /usr/local/mrca/bin ...

 \nCreating /etc/oratab file...
 Adding entry to /etc/oratab file...
 Entries will be added to the /etc/oratab file as needed by
 Database Configuration Assistant when a database is created
 Finished running generic part of root.sh script.
 Now product-specific root actions will be performed.
 Running Oracle9 root.sh script...
 \nThe following environment variables are set as:
     ORACLE_HOME=  /u01/app/oracle/product/10.1.2/mrca
 Finished running generic part of root.sh script.
 Now product-specific root actions will be performed.

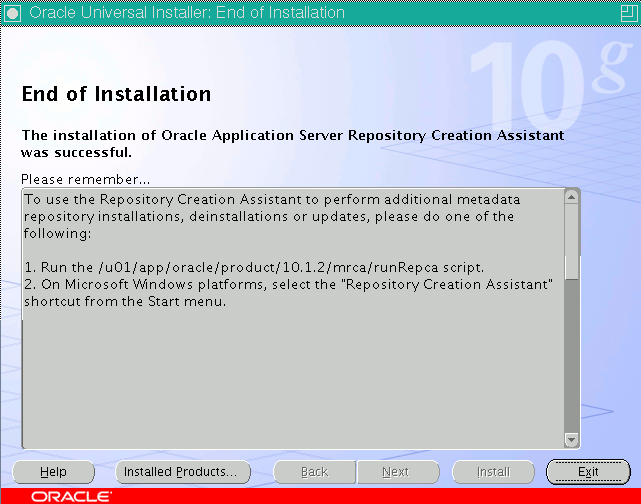

Teatatakse, et paigaldus on lõppenud

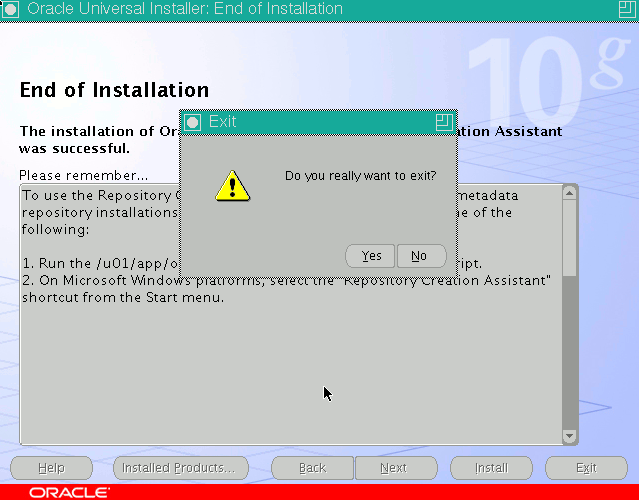

Installeri sulgemine toimub justkui ebaloomulikult öeldes Exit, aga nii ta on


MRCA abil MR skeemide laadimine olemasolevasse andmbaasi

MRCA sisaldab vahendit olemasoleva andmebaasi sobivuse kontrollimiseks, sedasi

 $ cd /u01/app/oracle/product/10.1.2/mrca/repca/prereq
 $ ./DBPrereqChecker -DBHOST baas-vip-loomaaed.tartu.ee -DBPORT 1521 -DBNAME loomdba.loomaaed.tartu.ee -SYSPWD xxx -LOGDIR /home/oracle/mrca-log
 Starting validation DatabasePrerequisite
 Database Problems
 The following problems were found with the specified database:
 The aq_tm_processes initialization parameter needs to be greater than or equal to 1. Please correct it and try again.

 The db_cache_size initialization parameter needs to be set to 144MB or a greater value. Please correct it and try again.

 The shared_pool_size initialization parameter needs to be set to 175MB or a greater value. Please correct it and try again.

 The java_pool_size initialization parameter needs to be set to 120MB or a greater value. After changing the value of the parameter, restart the database for the new value to take effect.

Selliste probleemide korrigeerimiseks tuleb

  • ..

Edu puhul vastatakse

 Starting validation DatabasePrerequisite
 Validation Succeeded -> DatabasePrerequisite
 Validation check complete

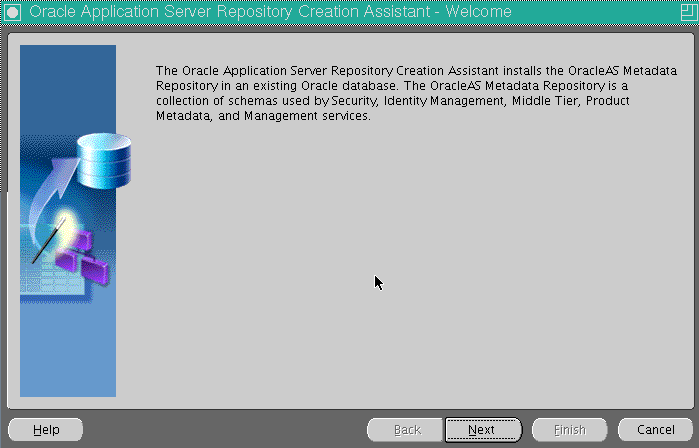

MRCA kasutamine toimub selliselt

 $ cd /u01/app/oracle/product/10.1.2/mrca
 $ ./runRepca

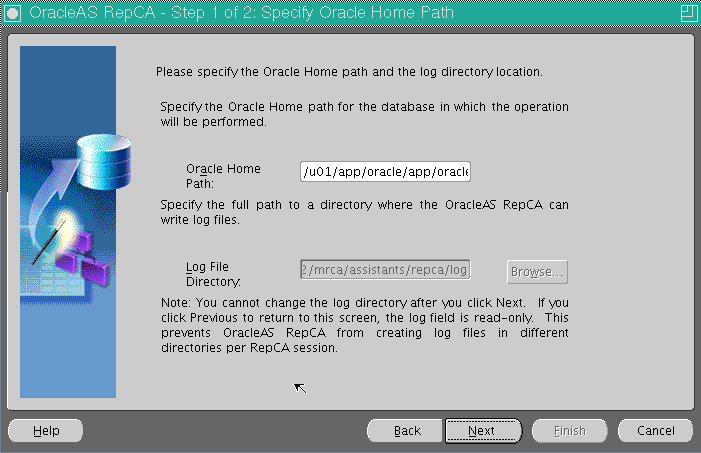

Seejärel tuleb sisestada kasutatava välise andmebaasi tee andmebaasi arvutis

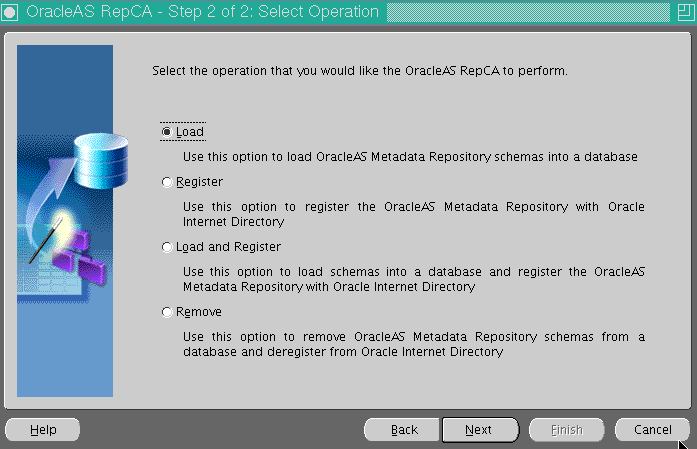

Näitame, et toimub andmete laadimine baasi

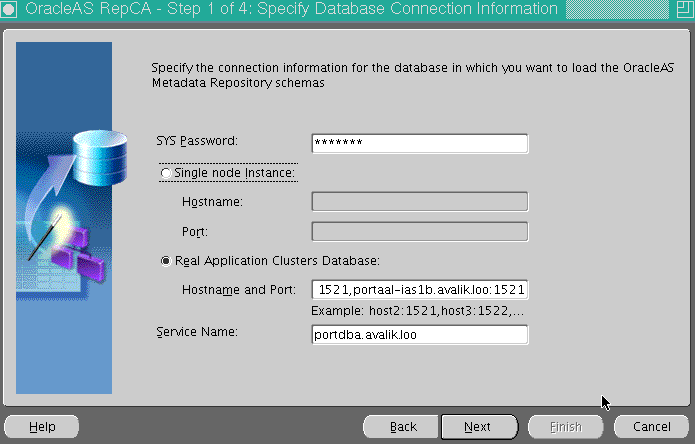

Näitame, millised baasiga on tegu, antud juhul RAC

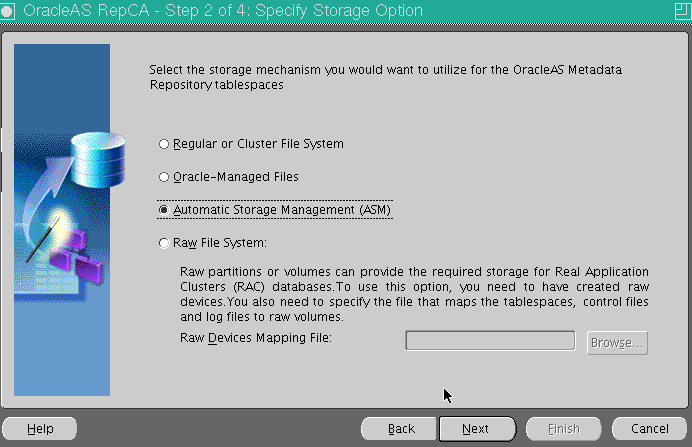

Näitame, et RAC kasutab ASMi

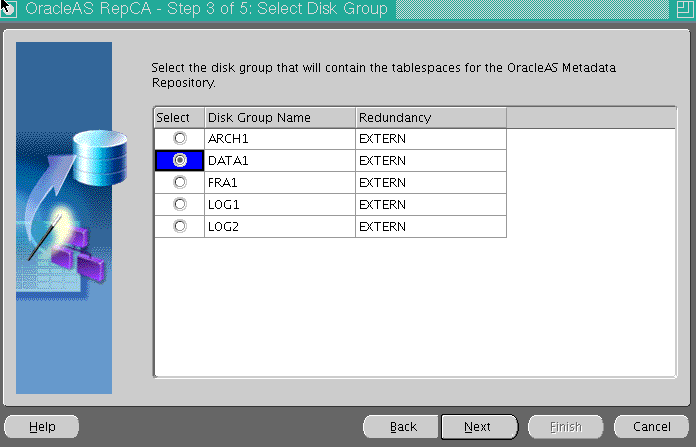

Grupivalik

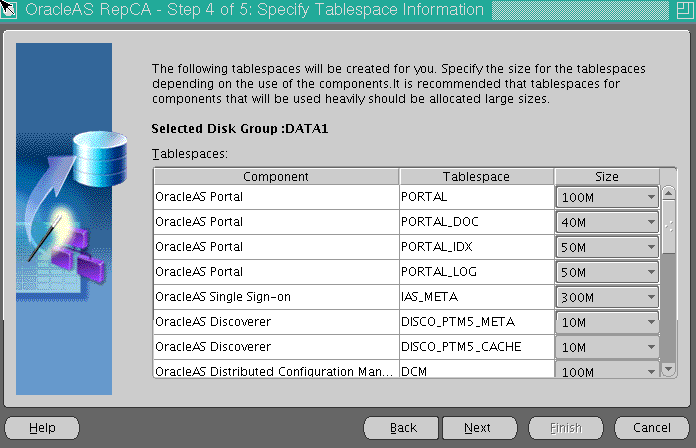

Tutvustab valikuid

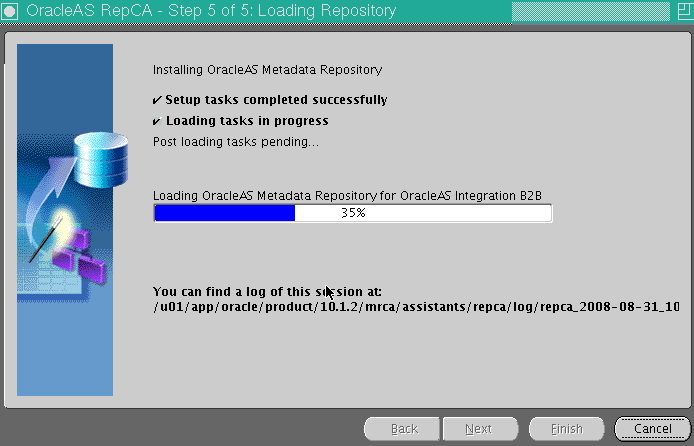

Arvuti näitab progressi

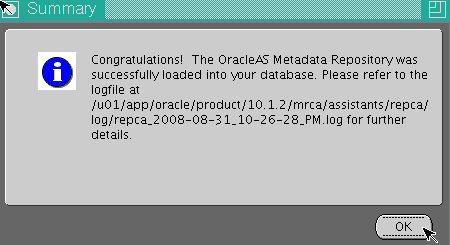

Arvuti õnnitleb


Märkused

  • Kui andmebaasile vastavad failid asuvad failisüsteemis sarnaselt, siis on tegu nn Regular File System storage tüübiga
 $ find /u01/app/oracle/oradata/
 /u01/app/oracle/oradata/
 /u01/app/oracle/oradata/portdba
 /u01/app/oracle/oradata/portdba/control01.ctl
 /u01/app/oracle/oradata/portdba/control02.ctl
 /u01/app/oracle/oradata/portdba/control03.ctl
 /u01/app/oracle/oradata/portdba/redo01.log
 /u01/app/oracle/oradata/portdba/redo02.log
 ...
